Traction and power steering controllers >> for DC permanent magnet motors[<< Back]

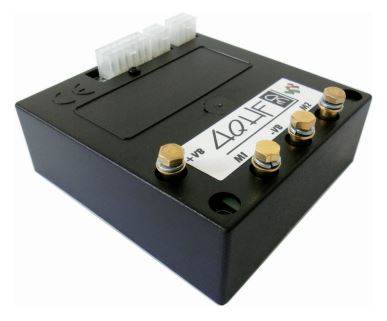

4qhf3d
Permanent magnet DC motor speed controllers designed to gradually reach the max speed in battery powered bidirectional applications.
Motor max current limited according to the needs during acceleration and deceleration.
Regenerative braking.
Current boost adjustable up to 15% of the max current for max 3 seconds.
Internal relay.
CANbus receives controls and transmits operating data (optional).
Programmable by EasySet PC software
Diagnosis by EasyTest PC software
USB-R2 serial interface.
4qHF3d
| model | current (A) | voltage (V) | size (mm) |
|---|---|---|---|
| 60/36 | 60 | 12-24-36 | 112x108x47 |
| 60/48 | 60 | 48 | 112x108x47 |
| 90/36 | 90 | 12-24-36 | 135x108x47 |
| 90/48 | 90 | 48 | 135x108x47 |
| 140/36 | 140 | 12-24-36 | 135x108x47 |
| 140/48 | 140 | 48 | 135x108x47 |
