Controllers for scrubber dryers machines[<< Back]

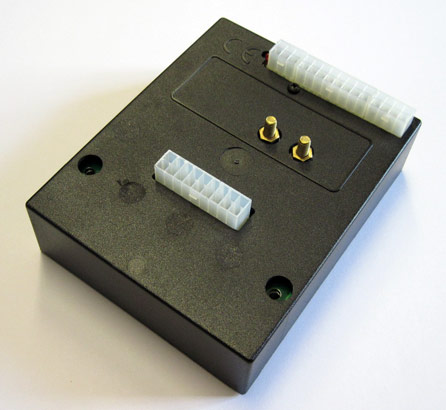

Dcm-06
Four quadrant control card featuring microprocessor control, MOSFET technology, and high frequency.
- Brush pressure control through actuator
- Brush motor control
- Squeegee control through actuator
- Suction motor control with input for full tank indication
- Water pump control with 8 levels
- Brush release function
- Output for a flash lamp
24-36V and 48V models [6A actuators, 80A brush current]
Programmable by console UMP or UMP for Windows PC software
Diagnosis by EasyTest PC software
USB-R2 serial interface.
